Descrição

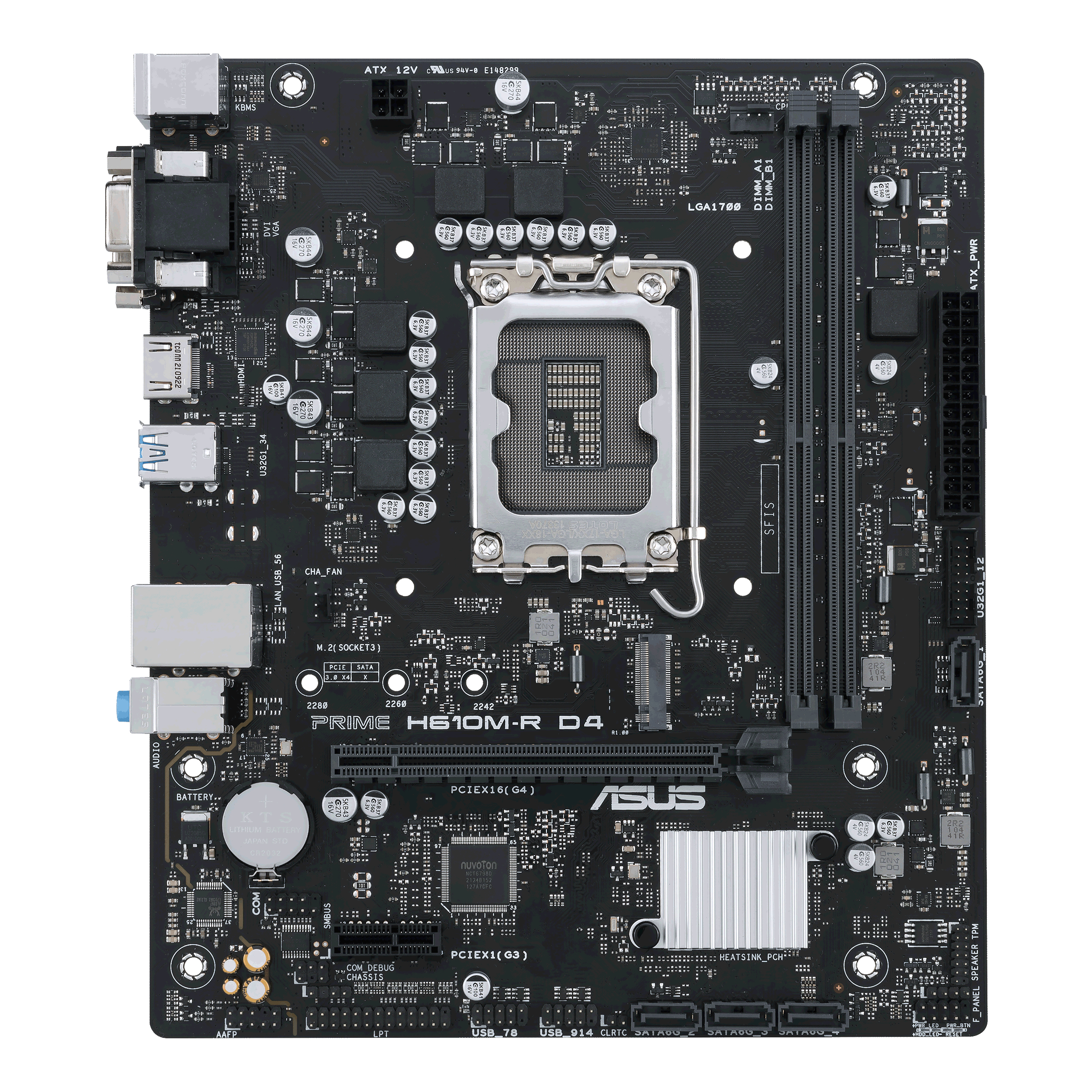

Asus prime h610m – r d4. fabricante de procesador: intel – socket de procesador: lga 1700 – procesador compatible: intel® celeron® – intel® core i3 – intel® core i5 – intel® core i7 – intel® core i9 -…. tipos
de memoria compatibles: ddr4 – sdram – memoria interna máxima: 64 gb – tipo de ranuras de memoria: dimm. interfaces de disco de almacenamiento soportados: m.2 – sata iii – tipos de unidades de
almacenamiento admitidas: hdd & ssd. máxima resolución: 3840 x 2160 pixeles. conector usb: usb tipo a

cpu intel® socket lga1700 for 12th gen intel® core – pentium® gold and celeron® processors*
supports up to intel® 65w cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu types.
chipset intel® h610 chipset
memory 2 x dimm – max. 64gb – ddr4 3200 – 3000 – 2933 – 2800 – 2666 – 2400 – 2133 non – ecc – un – buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
*actual memory data rate depends on the cpu types and dram modules – for more informatión refer to www.asus.com for memory support list.
graphics 1 x d – sub
1 x dvi – d
1 x hdmi® port**
* graphics specificatións may vary between cpu types. please refer to www.intel.com for any updates.
** supports 4k@60hz as specified in hdmi 2.1.
expansión slots intel® 12th gen processors
1 x pcie 4.0 x16 slot
intel® h610 chipset
1 x pcie 3.0 x1 slot
storage total supports 1 x m.2 slot and 4 x sata 6gb – s ports
intel® h610 chipset
m.2 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 mode)
4 x sata 6gb – s ports
ethernet 1 x realtek 1gb ethernet
usb rear usb (total 4 ports)
2 x usb 3.2 gen 1 ports (2 x type – a)
2 x usb 2.0 ports (2 x type – a)
front usb (total 6 ports)
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
audio pulgadas realtek 7.1 surround sound high definitión audio codec* – supports: jack – detectión – multi – streaming – front panel jack – retasking – supports up to 24 – bit – 192 khz playback pulgadas
audio features
– audio shielding
– premium audio capacitors
– dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output.
back panel i – o ports 2 x usb 3.2 gen 1 ports (2 x type – a)
2 x usb 2.0 ports (2 x type – a)
1 x d – sub port
1 x dvi – d port
1 x hdmi® port
1 x realtek 1gb ethernet port
3 x audio jacks
1 x ps – 2 keyboard (purple) port
1 x ps – 2 mouse (green) port
internal i – o connectors fan and cooling related
1 x 4 – pin cpu fan header
1 x 4 – pin chassis fan header
power related
1 x 24 – pin main power connector
1 x 4 – pin +12v power connector
storage related
1 x m.2 slot (key m)
4 x sata 6gb – s ports
usb
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
miscellaneous
1 x clear cmos header
1 x chassis intrusión header
1 x com port header
1 x front panel audio header (aafp)
1 x lpt header
1 x speaker header
1 x spi tpm header (14 – 1 pin)
1 x 10 – 1 pin system panel header
special features asus 5x protection iii
– digi+ vrm
– languard
– overvoltage protectión
– safeslot core
– stainless – steel back i – o
asus q – design
– q – dimm
– q – slot
asus thermal solutión
– aluminum heatsink design
software features asus exclusive software
armoury crate
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
asus cpu – z
nortón anti – virus software (free trial versión)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
bios 128 mb flash rom – uefi ami bios
manageability wol by pme – pxe
accessories cables
2 x sata 6gb – s cables
miscellaneous
1 x i – o shield
1 x m.2 anchor
installatión media
1 x support dvd
documentatión
1 x user guide
operating system windows® 11 64 – bit – windows® 10 64 – bit
form factor matx form factor
8.9 inch x 7.6 inch (22.6 cm x 19.3 cm )
