Descrição

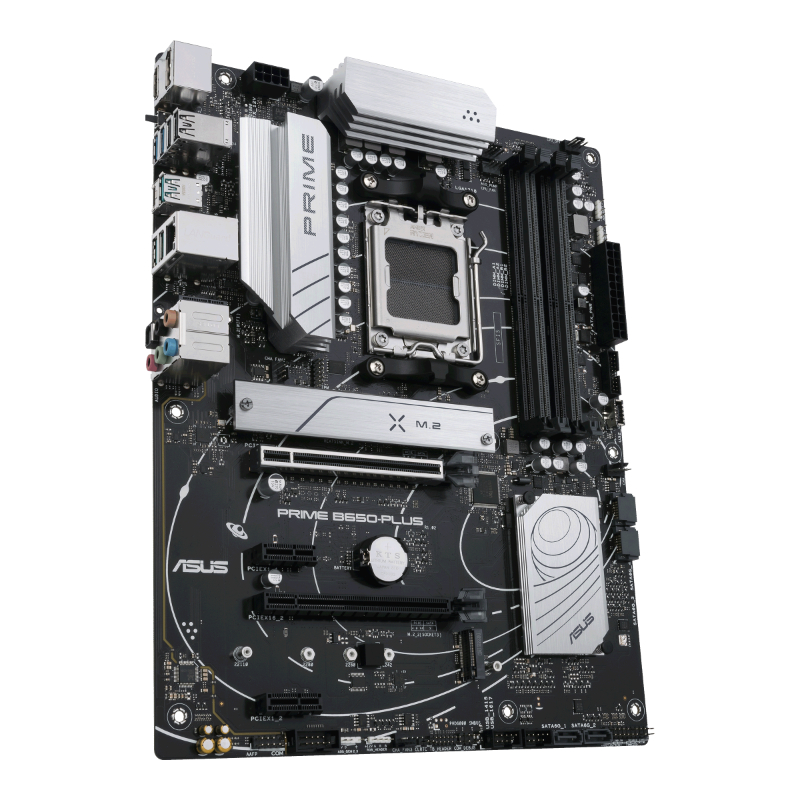

Zócalo AMD AM5: preparado para los procesadores de sobremesa AMD Ryzen™ serie 7000.. Conectividad ultrarrápida: M.2 PCIe 5.0, Ethernet Realtek de 2,5 Gb, USB 3.2 Gen 2 tipo C®, USB 3.2 Gen 1 tipo C® frontal, compatibilidad con USB4®.. ASUS OptiMem II: enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa de fondo para preservar la integridad de la señal y mejorar el overclocking de la memoria. Refrigeración completa: disipador térmico del VRM, disipador térmico del M.2, disipador térmico del PCH, cabezales de ventilador híbridos y Fan Xpert 2+.. Iluminación Aura Sync RGB: cabezales Gen 2 direccionables integrados en placa y cabezal Aura RGB para tiras LED RGB, fácilmente sincronizables con el hardware compatible con Aura Sync.. . Especificaciones:. . CPU. . AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors*. * Refer to www.asus.com for CPU support list.. . Chipset. . AMD B650 Chipset. . Memoria. . 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports AMD Extended Profiles for Overclocking (EXPO™). OptiMem II. * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.. . Gráficos. . 1 x DisplayPort**. 1 x HDMI® port***. * Graphics specifications may vary between CPU types.. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.. *** Supports 4K@60Hz as specified in HDMI® 2.1.. . Ranuras de expansión. . AMD Ryzen™ 7000 Series Desktop Processors. 1 x PCIe 4.0 x16 slot (supports x16 mode). AMD Ryzen™ 8000 Series Desktop Processors. 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**. AMD B650 Chipset. 1 x PCIe 4.0 x16 slot (supports x4 mode). 2 x PCIe 4.0 x1 slots. * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).. ** Specifications vary by CPU types.. . Almacenamiento. . Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*. AMD Ryzen™ 7000 Series Desktop Processors. M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). AMD Ryzen™ 8000 Series Desktop Processors. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**. AMD B650 Chipset. 4 x SATA 6Gb/s ports. * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.. ** Specifications vary by CPU types.. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. . Wireless & Bluetooth. . Vertical M.2 slot only (Key E, PCIe)*. * Wi-Fi module is sold separately.. . USB. . Rear USB (Total 8 ports). 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®). 2 x USB 3.2 Gen 1 ports (2 x Type-A). 2 x USB 2.0 ports (2 x Type-A). Front USB (Total 7 ports). 1 x USB 3.2 Gen 1 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC. – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. – Supports up to 24-Bit/192 kHz playback. Audio Features. – Audio Shielding. – Premium audio capacitors. – Dedicated audio PCB layers. . Puertos de E/S del panel posterior. . 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®). 2 x USB 3.2 Gen 1 ports (2 x Type-A). 2 x USB 2.0 ports (2 x Type-A). 1 x DisplayPort. 1 x HDMI® port. 1 x Vertical M.2 slot (Key E). 1 x Realtek 2.5Gb Ethernet port. 5 x Audio jacks. 1 x Optical S/PDIF out port. 1 x BIOS FlashBack™ button. . Conectores de E/S internos. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 3 x 4-pin Chassis Fan headers. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 2 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x Aura RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x SPI TPM header (14-1pin). 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thunderbolt™ (USB4®) header. . BIOS. . 256 Mb Flash ROM, UEFI AMI BIOS. Manejabilidad. WOL by PME, PXE. . Factor de forma. . ATX Form Factor. 30.5 cm x 24.4 cm
